Mini Shear
- Lightweight design for stability of operating machine
- Trunnion mounting cylinder for compact design
- Simple gap adjustment system for maintenance in the field
- High strength and wear resistance materials (Hardox) for reliability
- Full line-up for mini excavators
  Demolition Shear
(SH050H-SD)
■ Spec

# Specifications are subject to change due to Engineering Changes or Additional Options.
# Recently updated specifications can be found in [Catalogue] in the main menu.


unit :
SI unit US unit

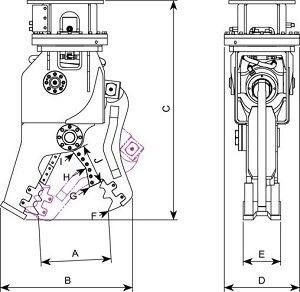

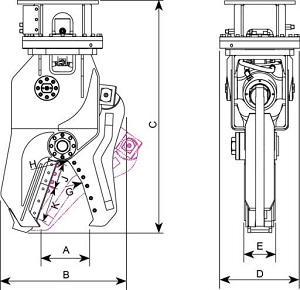

Description units SH020R SH030R SH040R SH050H SH050H-D
 Weight lb 419 639 882 1,102 1,190
 Max Opening Width A in 8.1 9.1 10.6 11.4 17.0
 Overall Width B in 18.8 22.2 28.0 28.3 31.1
 Overall Length C in 37.4 44.4 48.9 53.4 53.4
 Overall Height D in 11.4 13.8 15.9 18.3 18.3
 Body Width E in 5.2 5.7 5.7 7.1 9.1
 Crushing Force F US ton - - - - 37 (@3,500psi)
 Cutting Force G US ton 34 (@3,000psi) 48 (@3,000psi) 61 (@3,000psi) 78 (@3,500psi) 57 (@3,500psi)
H US ton 67 (@3,000psi) 119 (@3,000psi) 79 (@3,000psi) 188 (@3,500psi) 88 (@3,500psi)
I US ton - - 182 (@3,000psi) - 188 (@3,500psi)
 Cutter Length J in 3.9 4.9 4.9 5.9 9.7
K in 3.9 5.9 - 7.9 -
 Allowable Max. System Pressure psi 4,000 4,000 4,000 4,300 4,300
 Swing Motor Setting Pressure psi - - - 1,100 1,100
 Recommended Oil Flow Cylinder gpm 5.3 ~ 11.9 7.9 ~ 19.8 7.9 ~ 23.8 13.2 ~ 23.8 13.2 ~ 23.8
S / Motor gpm - - - 2.6 ~ 4.0 2.6 ~ 4.0
 Rotating - Free Hydraulic
 Recommended Carrier Weight lb 3,300 ~ 6,600 5,500 ~ 11,000 7,700 ~ 17,600 9,900 ~ 17,600 9,900 ~ 17,600
* Above specifications are subject to change without prior notice.

Cutting Force (appetite)



■ Sales point

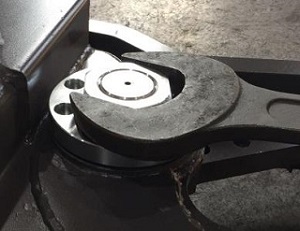

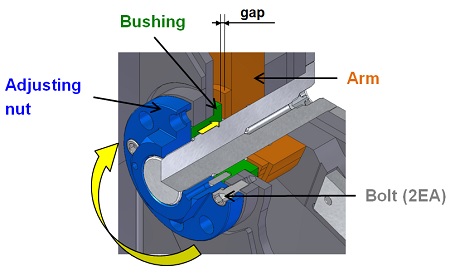

Gap adjust system







Combination of

-8 holes on adjusting nut
-6 holes on frame

Adjusting nut can be fixed every 15°
( = 0.083 mm of bushing movement).

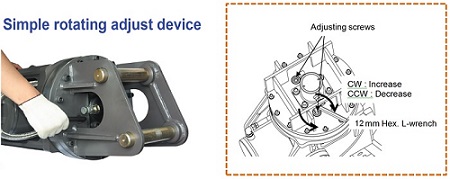

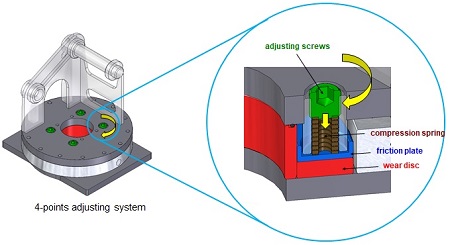

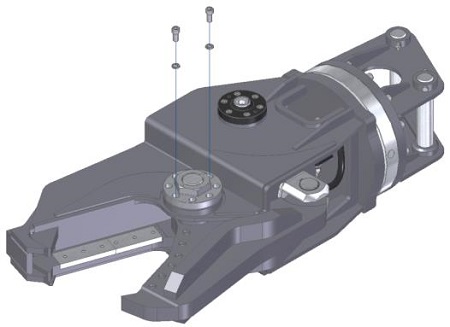

Rotating adjust device
    SH030R / CR030R (Mini 030 class)     SH040R / MP030R (Mini 030/040 new class)



Free rotating kit, Mini 050 class
    CR050H / SH050H / PR050H / SS050H / MP050H/ ST050H

Hydraulic rotating kit (standard)

Free rotating kit (option)



Even if hydraulic lines for rotating  are not equipped on base machine, free rotating is available with free rotating kit.



■ Photo
