Lightweight design for stability of operating machine |
- |
Trunnion mounting cylinder for compact design |
- |
Simple gap adjustment system for maintenance in the field |
- |
High strength and wear resistance materials (Hardox) for reliability |
- |
Full line-up for mini excavators |
|
 |
 |
|
Demolition Shear
(SH050H-SD) |
|
|
■ Spec |
 |
# Specifications are subject to change due to Engineering Changes or Additional Options.
# Recently updated specifications can be found in [Catalogue] in the main menu.
|
|
|
|

|
Description |
units |
SH020R |
SH030R |
SH040R |
SH050H |
SH050H-D |
Weight |
kg |
190 |
290 |
400 |
500 |
540 |
Max Opening Width |
A |
mm |
205 |
230 |
270 |
290 |
432 |
Overall Width |
B |
mm |
478 |
563 |
710 |
720 |
790 |
Overall Length |
C |
mm |
950 |
1,127 |
1,241 |
1,356 |
1,357 |
Overall Height |
D |
mm |
290 |
350 |
404 |
465 |
465 |
Body Width |
E |
mm |
132 |
145 |
145 |
180 |
232 |
Crushing Force |
F |
kN |
- |
- |
- |
- |
324
(@24MPa) |
Cutting Force |
G |
kN |
304
(@21MPa) |
431
(@21MPa) |
549
(@21MPa) |
686
(@24MPa) |
500
(@24MPa) |
H |
kN |
608
(@21MPa) |
1,079
(@21MPa) |
716
(@21MPa) |
1,667
(@24MPa) |
775
(@24MPa) |
I |
kN |
- |
- |
1,648
(@21MPa) |
- |
1,667
(@24MPa) |
Cutter Length |
J |
mm |
100 |
125 |
125 |
150 |
247 |
K |
mm |
100 |
150 |
- |
200 |
- |
Allowable Max. System Pressure |
MPa |
28 |
28 |
28 |
30 |
30 |
Swing Motor Setting Pressure |
MPa |
- |
- |
- |
8 |
8 |
Recommended Oil Flow |
Cylinder |
lpm |
20 ~ 45 |
30 ~ 75 |
30 ~ 90 |
50 ~ 90 |
50 ~ 90 |
S / Motor |
lpm |
- |
- |
|
10 ~ 15 |
10 ~ 15 |
Rotating |
- |
Free |
Hydraulic |
Recommended Carrier Weight |
ton |
1.5 ~ 3.0 |
2.5 ~ 5.0 |
3.5 ~ 8.0 |
4.5 ~ 8.0 |
4.5 ~ 8.0 |
|
* Above specifications are subject to change without prior notice. |
|
|
|

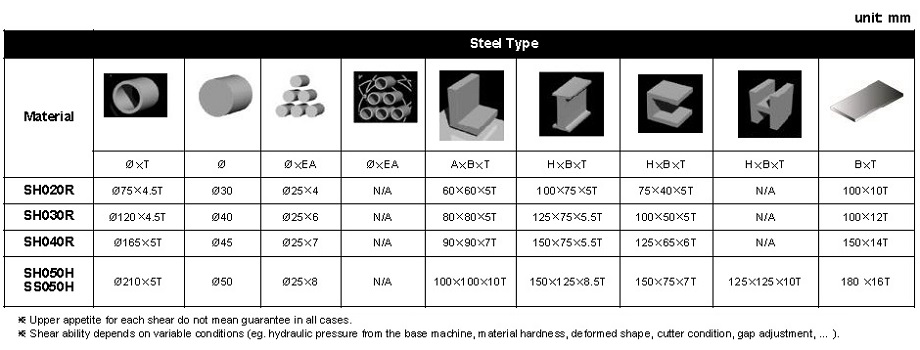

■ Cutting Force (appetite) |
 |
|
■ Sales point |
|
Gap adjust system |
|
 |

|
|

Combination of |
-8 holes on adjusting nut
-6 holes on frame |
|
Adjusting nut can be fixed every 15°
( = 0.083 mm of bushing movement). |
|
 |
|
|
Rotating adjust device |
SH030R / CR030R (Mini 030 class) |
SH040R / MP030R (Mini 030/040 new class) |

|

|
Free rotating kit, Mini 050 class |
|
CR050H / SH050H / PR050H / SS050H / MP050H/ ST050H |
Hydraulic rotating kit (standard) |
Free rotating kit (option) |
 |
 |
|
Even if hydraulic lines for rotating are not equipped on base machine, free rotating is available with free rotating kit. |
|
|
|
■ Photo |
 |
|
|
|
|
.gif) |
|
 |
