Multi Processor
- Impactful Crushing power for work efficiency
- Versatility work with 4 options (crushing/pulverizing/shearing/multi)
- High strength and wear resistance materials (Hardox) for reliability
- Speed-up valve for fast work
- Simple gap adjustment system for maintenance in the field

    *Option
Crusher Shear Pulverizer Multi


■ Spec

unit :
SI unit US unit


Description unit MP150H MP200H MP250H MP320H MP350H
 Weight kg 1,190 1,690 1,980 3,030 3,450
 Max Opening Width A mm 830 952 1,067 1,150 1,300
 Overall Width B mm 1,220 1,292 1,410 1,609 1,776
 Overall Length C mm 1,712 1,870 1,936 2,222 2,325
 Overall Height D mm 590 692 692 811 811
 Body Width E mm 340 376 450 500 500
 Crushing Force @33MPa F kN 441 579 647 863 1,020
G kN 696 892 1,069 1,393 1,697
 Cutting Force @33MPa H kN 1,638 2,118 2,422 3,168 4,256
 Cutter Length K mm 170 170 170 200 200
 Allowable Max. System Pressure MPa 35 38 38 38 38
 Swing Motor Setting Pressure MPa 21 21 21 21 21
 Recommended Oil Flow Cylinder lpm 80 ~ 180 110 ~ 250 150 ~ 250 250 ~ 350 250 ~ 350
S / Motor lpm 36 ~ 40 36 ~ 40 36 ~ 40 36 ~ 40 36 ~ 40
 Speed-up Valve - Standard
 Rotating - Hydraulic
 Recommended Carrier Weight ton 12 ~ 18 16 ~ 24 20 ~ 28 28 ~ 38 30 ~ 40
 Option Jaw Type   P, M P, M S, P, M S, P, M S, P, M
* Above specifications are subject to change without prior notice.



■ Sales point

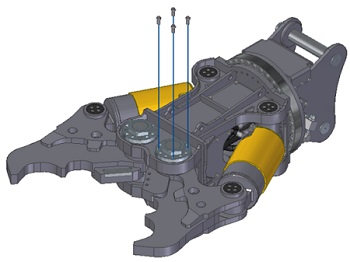

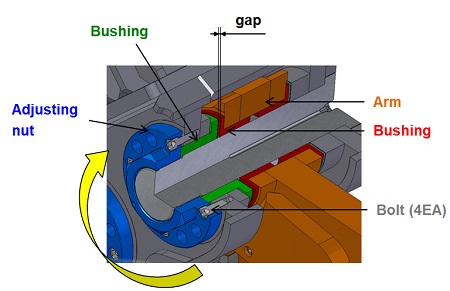

Gap adjust system
     MP250H / MP320H / MP350H





Combination of

-12 holes on adjusting nut
-16 holes on frame

Adjusting nut can be fixed every 15°
( = 0.083 mm of bushing movement).

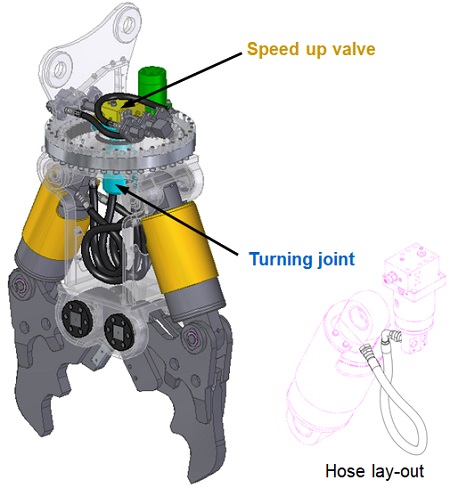

Speed-up valve

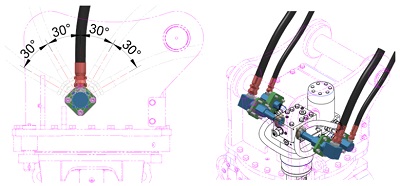

Adjustable main & rotation hose port





Adjustable port direction by each 30 degrees for main & rotation hose connection

  •On the turning joint
•Simple hose layout in the body
•For easy maintenance
